D25.4 × 6.35mm N40 Countersunk Disc Magnets With 5mm Hole High Reliability

N40 disc magnets D25.4 × 6.35mm with 5mm Countersunk Hole , NdFeB counter sink Magnets

Selection of a Surface Treatment

Magnet materials may be utilized without coating in low vacuum conditions, but under high vacuum conditions, pressures lower than 10-3 Torr, surface treatment should be considered. Metallic surface treatments are the most desirable, since polymer coatings will outgass, however, our bonded magnet has been tested and found to meet standards considered very good for space applications.

Star Magnet offers the following types of surface treatments that are vacuum compatible:

Nickel Plate

Cadmium Chromate

Aluminum Chromate plate

Highlights:

1. Counter sunk holes tolerance control:

(1). During the process of grinding and cuting, controlled by high precise machines.

(2). after plated, we will check the magnet tolerance as per drawings based on AQL standard.

2. Non-magnetism protective package:

(step 1). sorting the defect product after magnetized

(step 2). check the total quantity as per client order, and packed one by one with good spacer.

(step 3). Vaccum packing based on magnet size and inner box

(step 4). Inner box packing and put the shipping label on the inner box

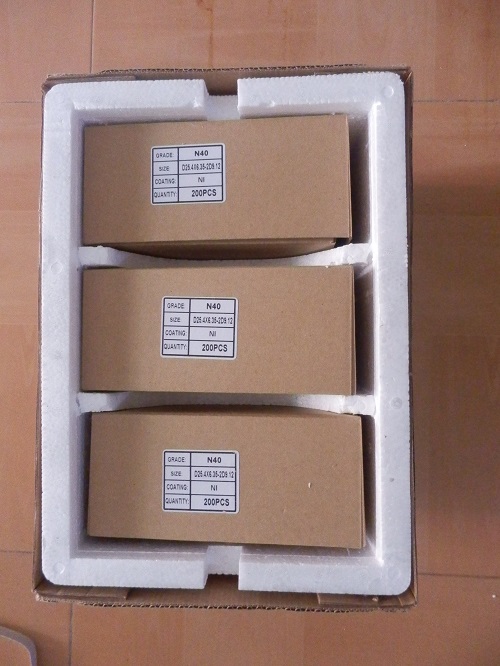

(step 5). Foam protection packing, and then iron packaging to finish the Non-magnetism protection

(step 6). Exporting carton with table tie and then pallet, post magnet Grade, size, quantities or special requirements

3. Customer feedback:

we will have the Customer Satisfaction Questionnaire from most of our customers.

Grade	Remanece		Coercive Force (Hcb)		Intrinsic Coercivity		Max Energy		Curie	Coefficient TW
	Remanece				Intrinsic Coercivity		Max Energy		Tempreture
	Br				Hcj		(BH)max		TC
	T	KGs	KA/m	KOe	KA/m	Koe	KJ/m3	MGOe	℃	℃
N33	1.13-1.18	11.3-11.8	≥836	≥10.5	≥955	≥12	247-263	31-33	310	≤80
N35	1.18-1.23	11.8-12.3	≥868	≥10.9	≥955	≥12	263-287	33-36	310	≤80
N38	1.22-1.28	12.2-12.8	≥899	≥11.3	≥955	≥12	287-310	36-39	310	≤80
N40	1.26-1.31	12.6-13.1	≥923	≥11.6	≥955	≥12	302-326	38-41	310	≤80
N42	1.28-1.34	12.8-13.4	≥923	≥11.6	≥955	≥12	318-342	40-43	310	≤80
N45	1.33-1.38	13.3-13.8	≥923	≥11.6	≥955	≥12	342-366	43-46	310	≤80
N48	1.38-1.42	13.8-14.2	≥923	≥11.6	≥955	≥12	358-390	45-48	310	≤80
N50	1.40-1.45	14.0-14.5	≥836	≥10.5	≥876	≥11	382-406	48-51	310	≤80
N52	1.43-1.48	14.3-14.8	≥796	≥10.0	≥876	≥11	398-422	50-53	310	≤80
N35M	1.17-1.22	11.7-12.2	≥868	≥10.9	≥1114	≥14	263-287	33-36	320	≤100
N38M	1.22-1.25	12.2-12.5	≥899	≥11.3	≥1114	≥14	287-310	36-39	320	≤100
N40M	1.25-1.28	12.5-12.8	≥923	≥11.6	≥1114	≥14	302-326	38-41	320	≤100
N42M	1.28-1.32	12.8-13.2	≥955	≥12.0	≥1114	≥14	318-342	40-43	320	≤100
N45M	1.32-1.38	13.2-13.8	≥995	≥12.5	≥1114	≥14	342-366	43-46	320	≤100
N48M	1.36-1.43	13.6-14.3	≥1027	≥12.9	≥1114	≥14	366-390	46-49	320	≤100
N50M	1.40-1.45	14.0-14.5	≥1033	≥13.0	≥1114	≥14	382-406	48-51	320	≤100
N33H	1.14-1.19	11.4-11.9	≥836	≥10.5	≥1353	≥17	247-270	31-34	330	≤120
N35H	1.17-1.22	11.7-12.2	≥868	≥10.9	≥1353	≥17	263-287	33-36	330	≤120
N38H	1.22-1.25	12.2-12.5	≥899	≥11.3	≥1353	≥17	287-310	36-39	330	≤120
N40H	1.25-1.28	12.5-12.8	≥923	≥11.6	≥1353	≥17	302-326	38-41	330	≤120
N42H	1.28-1.32	12.8-13.2	≥955	≥12.0	≥1353	≥17	318-342	40-43	330	≤120
N45H	1.30-1.36	13.0-13.6	≥963	≥12.1	≥1353	≥17	326-358	43-46	330	≤120
N48H	1.37-1.43	13.7-14.3	≥995	≥12.5	≥1353	≥17	366-390	46-49	330	≤120
N30SH	1.08-1.13	10.8-11.3	≥810	≥10.2	≥1592	≥20	223-247	28-31	340	≤150
N33SH	1.13-1.17	11.3-11.7	≥844	≥10.6	≥1592	≥20	247-271	31-34	340	≤150
N35SH	1.17-1.22	11.7-12.2	≥876	≥11.0	≥1592	≥20	263-287	33-36	340	≤150
N38SH	1.22-1.25	12.2-12.5	≥907	≥11.4	≥1592	≥20	287-310	36-39	340	≤150
N40SH	1.25-1.28	12.5-12.8	≥939	≥11.8	≥1592	≥20	302-326	38-41	340	≤150
N42SH	1.28-1.32	12.8-13.2	≥987	≥12.4	≥1592	≥20	318-342	40-43	340	≤150
N45SH	1.32-1.38	13.2-13.8	≥1003	≥12.6	≥1592	≥20	342-366	43-46	340	≤150
N28UH	1.02-1.08	10.2-10.8	≥764	≥9.60	≥1990	≥25	207-231	26-29	350	≤180
N30UH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥1990	≥25	223-247	28-31	350	≤180
N33UH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥1990	≥25	247-271	31-34	350	≤180
N35UH	1.18-1.22	11.8-12.2	≥860	≥10.8	≥1990	≥25	263-287	33-36	350	≤180
N38UH	1.22-1.25	12.2-12.5	≥876	≥11.0	≥1990	≥25	287-310	36-39	350	≤180
N40UH	1.25-1.28	12.5-12.8	≥899	≥11.3	≥1990	≥25	302-326	38-41	350	≤180
N28EH	1.04-1.09	10.4-10.9	≥780	≥9.80	≥2388	≥30	207-231	26-29	380	≤200
N30EH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥2388	≥30	223-247	28-31	380	≤200
N33EH	1.13-1.17	11.3-11.7	≥836	≥10.5	≥2388	≥30	247-271	31-34	380	≤200
N35EH	1.17-1.22	11.7-12.2	≥876	≥11.0	≥2388	≥30	263-287	33-36	380	≤200
N38EH	1.22-1.29	12.2-12.9	≥915	≥11.5	≥2388	≥30	287-318	36-40	380	≤200
N30AH	1.08-1.15	10.8-11.5	≥804	≥10.1	≥2786	≥35	223-255	28-32	380	≤230
N33AH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥2786	≥35	247-279	31-35	380	≤230
NdFeB Surface coating:		Zinc plated	Ni-Cu-Ni plated	Silver plated	Nickel plated	Aurum plated	Epoxy coated	Phosphatsing	Parylene	other coating
