Garage Electric Door Magnet Nickel Coated With ISO 9001 RoHS Certification

Ask Lasest Price
Brand Name :	STAR
Model Number :	D17-52
Certification :	ISO9001, RoHS, MSDS, Patent certificate, Quality Certificate
Price :	$0.1~$50.00
Payment Terms :	T/T, Western Union, MoneyGram, Paypal, L/C, WECHAT
Supply Ability :	1000 tons per month
Delivery Time :	5~15 days as per orderquantity

Add to Cart

Product Details
Company Profile

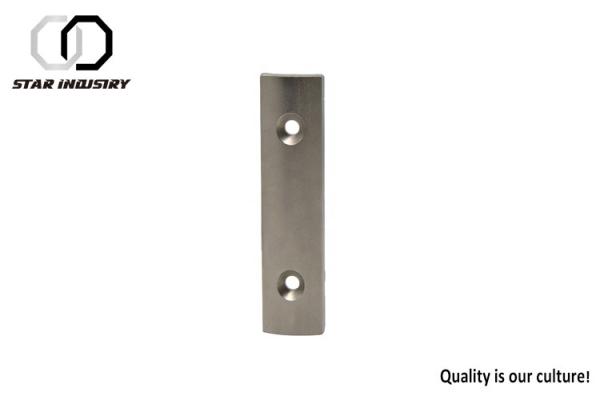

Garage Electric Door Magnet Nickel Coated With ISO 9001 RoHS Certification

custom door magnets , garage door magnets , electric door magnets

If you need ask a technical solution about the strongest N52 NdFeB Magnets, we are always happy to help here.

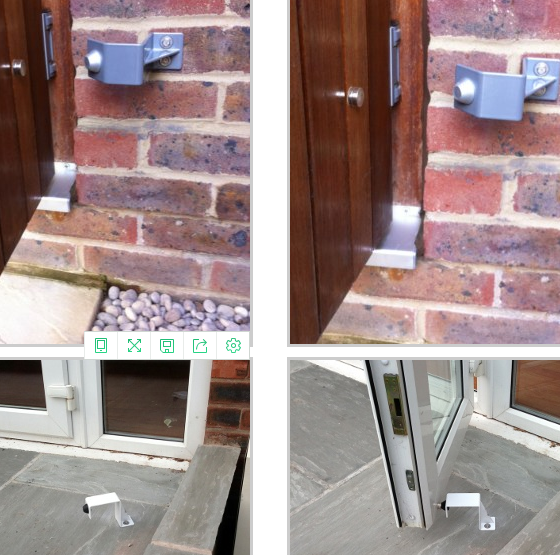

Our N52 door magnets is mainly for below door stopper application:

Heavy duty door

Garage door

Mini Stopper

Multistopper

Patio Doorstopper
Floor Stopper
Decking Stopper
Frame Stopper
Shower Stopper
Catch Stopper
Custom Stopper
Magnetic Holder

Car door

Window holder

glass door

cabinet door

garage door

sliding screen door

alarm door

security door

kitchen door
Room Stopper

Soffit Stopper

Baby Stopper

Edge Stopper

Chrome Stop

refrigerator door

Important remarks for reference before you design the door production

1. Our magnet options are great but please bear in mind that these are not electromagnets,

they are the strongest ndfeb magnets available.

2. N52 Magnets are hot selling in USA, there are also N54 / N55 as “being called” global markets,

but actually that is only N52 made on top property level.

3. They're incredibly strong but please bear in mind the size, weight & windage of your door.

4. Door stops top & bottom are advised for anything other than a small, light door.

5. In order to save the cost, now many door customers use N50 instead of N52 Neodymium Magnet,

Even N35 very common as well.

Grade	Remanece		Coercive Force (Hcb)		Intrinsic Coercivity		Max Energy		Curie	Coefficient TW
	Remanece				Intrinsic Coercivity		Max Energy		Tempreture
	Br				Hcj		(BH)max		TC
	T	KGs	KA/m	KOe	KA/m	Koe	KJ/m3	MGOe	℃	℃
N33	1.13-1.18	11.3-11.8	≥836	≥10.5	≥955	≥12	247-263	31-33	310	≤80
N35	1.18-1.23	11.8-12.3	≥868	≥10.9	≥955	≥12	263-287	33-36	310	≤80
N38	1.22-1.28	12.2-12.8	≥899	≥11.3	≥955	≥12	287-310	36-39	310	≤80
N40	1.26-1.31	12.6-13.1	≥923	≥11.6	≥955	≥12	302-326	38-41	310	≤80
N42	1.28-1.34	12.8-13.4	≥923	≥11.6	≥955	≥12	318-342	40-43	310	≤80
N45	1.33-1.38	13.3-13.8	≥923	≥11.6	≥955	≥12	342-366	43-46	310	≤80
N48	1.38-1.42	13.8-14.2	≥923	≥11.6	≥955	≥12	358-390	45-48	310	≤80
N50	1.40-1.45	14.0-14.5	≥836	≥10.5	≥876	≥11	382-406	48-51	310	≤80
N52	1.43-1.48	14.3-14.8	≥796	≥10.0	≥876	≥11	398-422	50-53	310	≤80
N35M	1.17-1.22	11.7-12.2	≥868	≥10.9	≥1114	≥14	263-287	33-36	320	≤100
N38M	1.22-1.25	12.2-12.5	≥899	≥11.3	≥1114	≥14	287-310	36-39	320	≤100
N40M	1.25-1.28	12.5-12.8	≥923	≥11.6	≥1114	≥14	302-326	38-41	320	≤100
N42M	1.28-1.32	12.8-13.2	≥955	≥12.0	≥1114	≥14	318-342	40-43	320	≤100
N45M	1.32-1.38	13.2-13.8	≥995	≥12.5	≥1114	≥14	342-366	43-46	320	≤100
N48M	1.36-1.43	13.6-14.3	≥1027	≥12.9	≥1114	≥14	366-390	46-49	320	≤100
N50M	1.40-1.45	14.0-14.5	≥1033	≥13.0	≥1114	≥14	382-406	48-51	320	≤100
N33H	1.14-1.19	11.4-11.9	≥836	≥10.5	≥1353	≥17	247-270	31-34	330	≤120
N35H	1.17-1.22	11.7-12.2	≥868	≥10.9	≥1353	≥17	263-287	33-36	330	≤120
N38H	1.22-1.25	12.2-12.5	≥899	≥11.3	≥1353	≥17	287-310	36-39	330	≤120
N40H	1.25-1.28	12.5-12.8	≥923	≥11.6	≥1353	≥17	302-326	38-41	330	≤120
N42H	1.28-1.32	12.8-13.2	≥955	≥12.0	≥1353	≥17	318-342	40-43	330	≤120
N45H	1.30-1.36	13.0-13.6	≥963	≥12.1	≥1353	≥17	326-358	43-46	330	≤120
N48H	1.37-1.43	13.7-14.3	≥995	≥12.5	≥1353	≥17	366-390	46-49	330	≤120
N30SH	1.08-1.13	10.8-11.3	≥810	≥10.2	≥1592	≥20	223-247	28-31	340	≤150
N33SH	1.13-1.17	11.3-11.7	≥844	≥10.6	≥1592	≥20	247-271	31-34	340	≤150
N35SH	1.17-1.22	11.7-12.2	≥876	≥11.0	≥1592	≥20	263-287	33-36	340	≤150
N38SH	1.22-1.25	12.2-12.5	≥907	≥11.4	≥1592	≥20	287-310	36-39	340	≤150
N40SH	1.25-1.28	12.5-12.8	≥939	≥11.8	≥1592	≥20	302-326	38-41	340	≤150
N42SH	1.28-1.32	12.8-13.2	≥987	≥12.4	≥1592	≥20	318-342	40-43	340	≤150
N45SH	1.32-1.38	13.2-13.8	≥1003	≥12.6	≥1592	≥20	342-366	43-46	340	≤150
N28UH	1.02-1.08	10.2-10.8	≥764	≥9.60	≥1990	≥25	207-231	26-29	350	≤180
N30UH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥1990	≥25	223-247	28-31	350	≤180
N33UH	1.13-1.17	11.3-11.7	≥852	≥10.7	≥1990	≥25	247-271	31-34	350	≤180
N35UH	1.18-1.22	11.8-12.2	≥860	≥10.8	≥1990	≥25	263-287	33-36	350	≤180
N38UH	1.22-1.25	12.2-12.5	≥876	≥11.0	≥1990	≥25	287-310	36-39	350	≤180
N40UH	1.25-1.28	12.5-12.8	≥899	≥11.3	≥1990	≥25	302-326	38-41	350	≤180
N28EH	1.04-1.09	10.4-10.9	≥780	≥9.80	≥2388	≥30	207-231	26-29	380	≤200
N30EH	1.08-1.13	10.8-11.3	≥812	≥10.2	≥2388	≥30	223-247	28-31	380	≤200
N33EH	1.13-1.17	11.3-11.7	≥836	≥10.5	≥2388	≥30	247-271	31-34	380	≤200
N35EH	1.17-1.22	11.7-12.2	≥876	≥11.0	≥2388	≥30	263-287	33-36	380	≤200
N38EH	1.22-1.29	12.2-12.9	≥915	≥11.5	≥2388	≥30	287-318	36-40	380	≤200
N30AH	1.08-1.15	10.8-11.5	≥804	≥10.1	≥2786	≥35	223-255	28-32	380	≤230
N33AH	1.14-1.21	11.4-12.1	≥852	≥10.7	≥2786	≥35	247-279	31-35	380	≤230
NdFeB Surface coating:		Zinc plated	Ni-Cu-Ni plated	Silver plated	Nickel plated	Aurum plated	Epoxy coated	Phosphatsing	Parylene	other coating
